AUC-based Evaluation¶

Until now, we introduced accuracy measures requiring to threshold the produced anomaly score of anomaly detection methods. However, the accuracy values vary significantly when the threshold changes. In order to evaluate a method holistically using its corresponding anomaly score, two measures from the AUC family of measures are used.

AUC-ROC¶

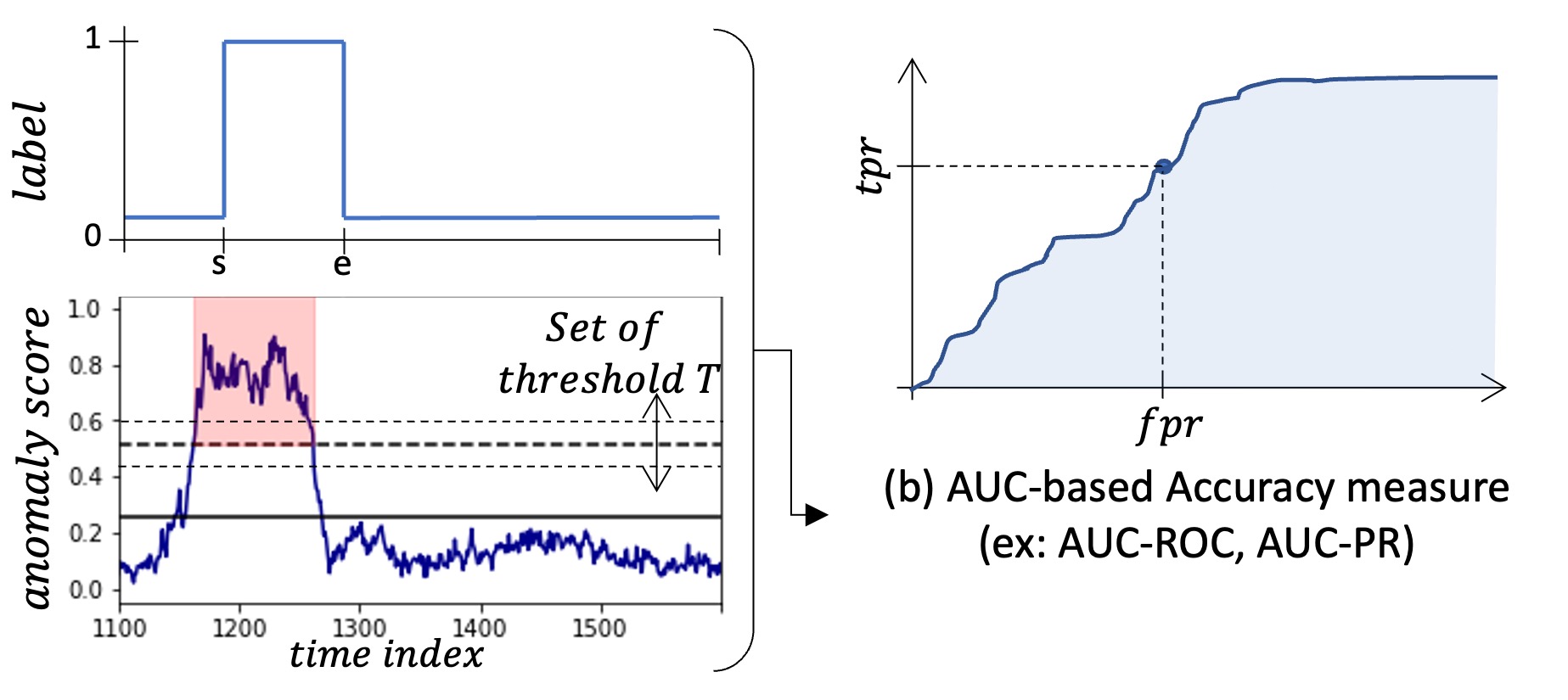

The Area Under the Receiver Operating Characteristics curve (AUC-ROC) is defined as the area under the curve corresponding to TPR on the y-axis and FPR on the x-axis when we vary the anomaly score threshold. The area under the curve is computed using the trapezoidal rule. For that purpose, we define \(Th\) as an ordered set of thresholds between 0 and 1. Formally, we have \(Th=[Th_0,Th_1,...Th_N]\) with \(0=Th_0<Th_1<...<Th_N=1\). Therefore, \(AUC\text{-}ROC\) is defined as follows:

\(AUC\text{-}ROC = \frac{1}{2}\sum_ {k=1}^{N} \Delta^{k}_ {TPR}.\Delta^{k}_ {FPR}\)

with:

\({\Delta^{k}}_ {FPR} = FPR(Th_ {k})-FPR(Th_ {k-1})\)
\({\Delta^{k}}_ {TPR} = TPR(Th_ {k-1})+TPR(Th_ {k})\)

AUC-PR¶

The Area Under the Precision-Recall curve (AUC-PR) is defined as the area under the curve corresponding to the Recall on the x-axis and Precision on the y-axis when we vary the anomaly score threshold. As before, the area under the curve is computed using the trapezoidal rule. Thus, we define AUC-PR:

\(AUC\text{-}PR = \frac{1}{2}\sum_ {k=1}^{N} \Delta^{k}_ {Precision}*\Delta^{k}_ {Recall}\)

with:

\(\Delta^{k}_ {Recall} = Recall(Th_ {k})-Recall(Th_ {k-1})\)
\(\Delta^{k}_ {Precision} = Precision(Th_ {k-1})+Precision(Th_ {k})\)

A simpler alternative to approximate the area under the curve is to compute the average Precision of the PR curve: In this demo, we use the above equation to approximate AUC-PR.
